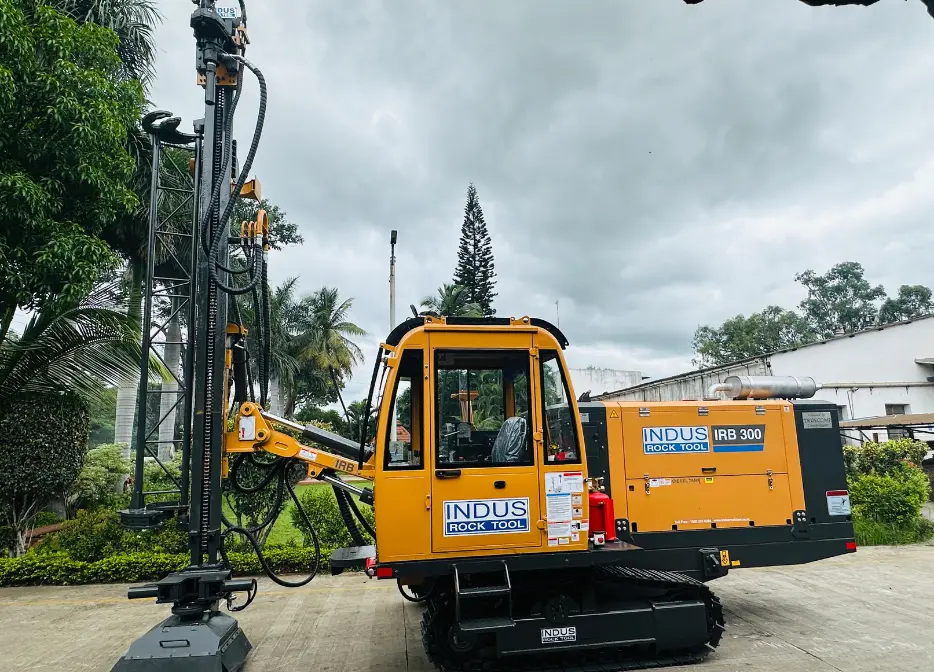

IRB 300

RB 300 is a track mounted, self-contained, self-propelled, diesel engine driven drilling rig using on board high pressure air compressor @200 PSI suitable for DTH Drilling hole of 3 ½” to 4 ½” (89 to 115 mm) diameter.
Advance hydraulic load sensing pump and valve bank.
Automatic rod ‘D’ coupling system for smooth rod opening.
Heavy duty fabricated drill guide system suitable for 12 ft. drill rod with 3 rod of 12 ft. in carrier.
Safety interlock Provision between drilling & tramming.
Wet dust suppression system with 300 ltr. Water tank.
Powerful traction with 300 mm wide shoe pads.
High ground clearance of 478 mm.
Ergonomically Designed operators control console & A/C Cabin.
Fire safety system, two front & one back light on cabin, Night lamp, Reverse horn with siren light, Emergency stop button, Large rear mirror.

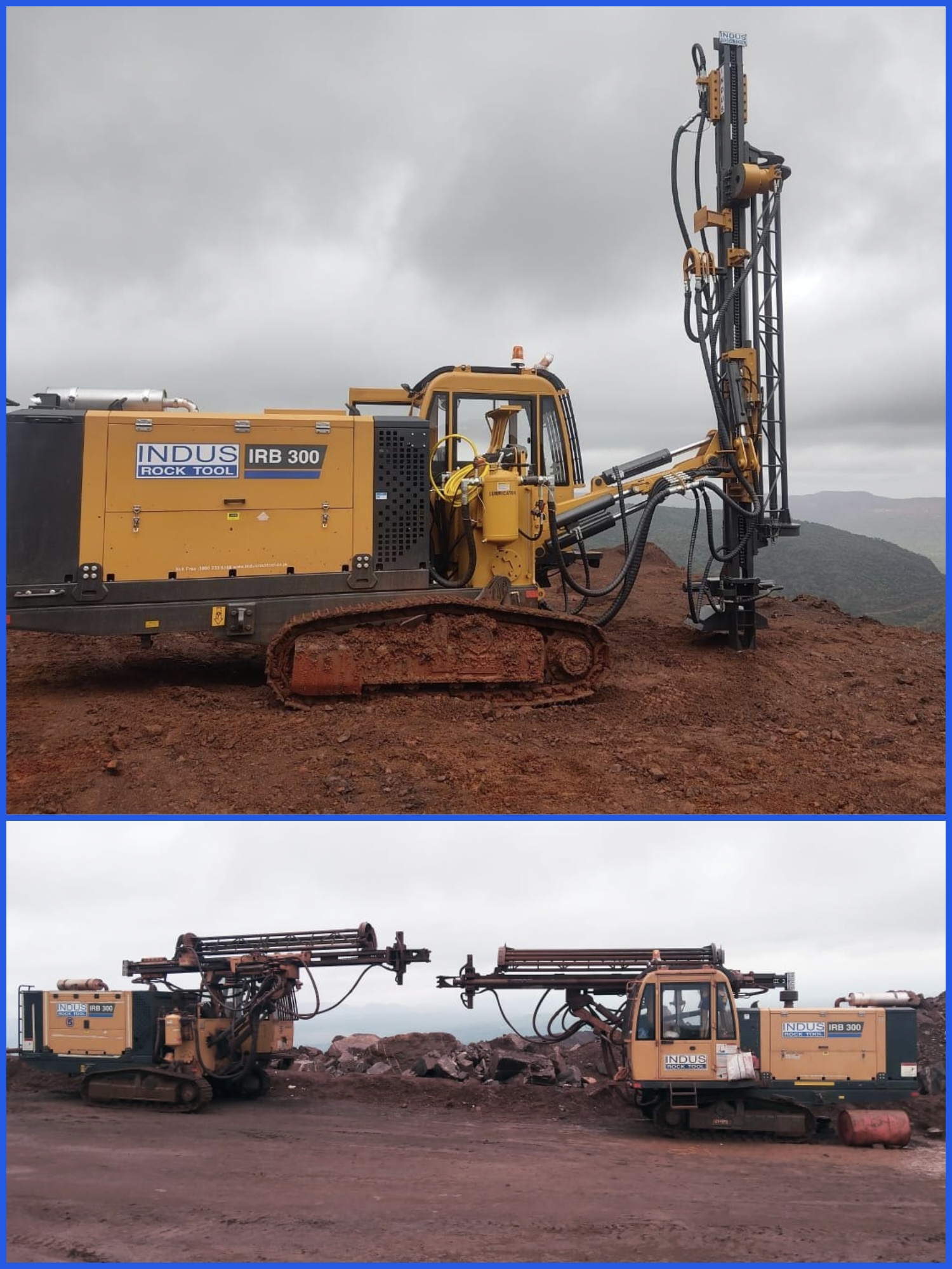

Site Images
