IRB 220SC(Geo Tec – Indus Rock Tool

IRB 220 SC (Geo Tec)

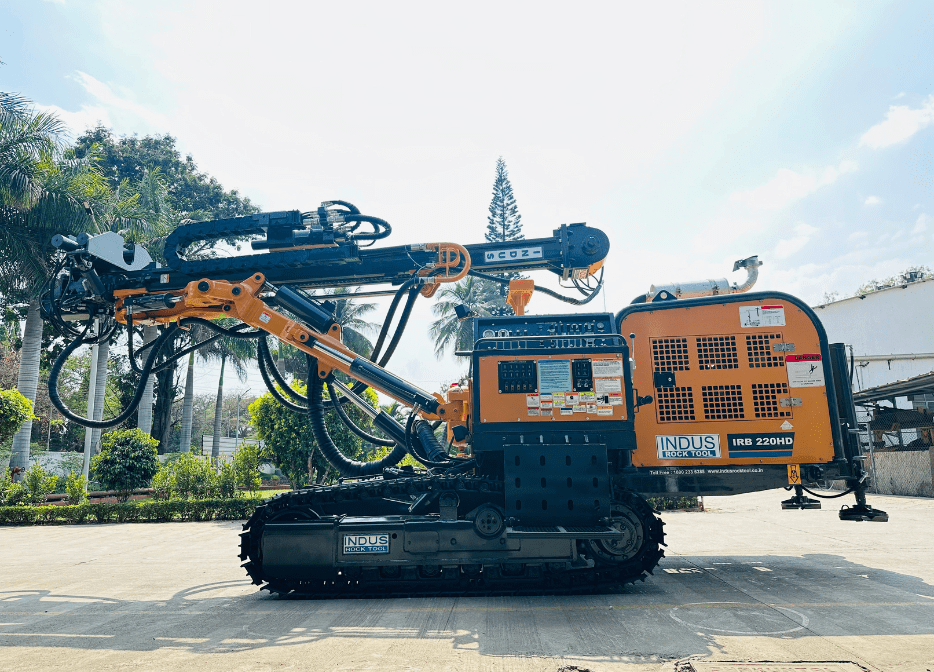

High-Torque Versatile Drilling Solution The IRB 220 SC (Geo Tec) is a powerful, self-propelled, high-torque drill, designed for micro piling, anchoring, and Odex drilling with casing. Built for superior performance and durability, this machine thrives in challenging terrains while ensuring precision and efficiency.

Feature:

High-Torque Drilling – Achieves exceptional performance in micro piling, anchoring, and casing applications.
Heavy-Duty Undercarriage – Crawler-type 2-speed system with hydraulic track oscillation for stability on rough terrain.
Powerful Turbo-Charged Engine – Ensures high productivity and reliability in demanding drilling operations.
Efficient Rod Handling – Supports up to 6.5 feet rod capacity for enhanced drilling capability.
Hydraulic Jacks – Equipped with four hydraulic jacks (two front, two rear) for superior stability.
Winch System – 1.5-ton capacity for efficient casing handling.
Reinforced Boom System – Designed for heavy-duty performance and durability.
Dust Suppression System – Ensures cleaner operations with reduced environmental impact.

Experience unmatched performance, stability, and efficiency with the IRB 220 SC (Geo Tec)—your ultimate solution for advanced drilling needs!

Specification:

Model	Units	IRB 220 SC (Geo Tec)
Working Weight (Approx)	kg	9000
DTH / Top Hammer	Type	DTH
Hole Daimeter	Mm	89 ~ 165(Casing185)
Rod Length	Mm(Feet)	2000
Hole Depth	Mtr(Feet)	115
Recommended Air Compressor	CFM/PSI	575 / 225 950 / 290
