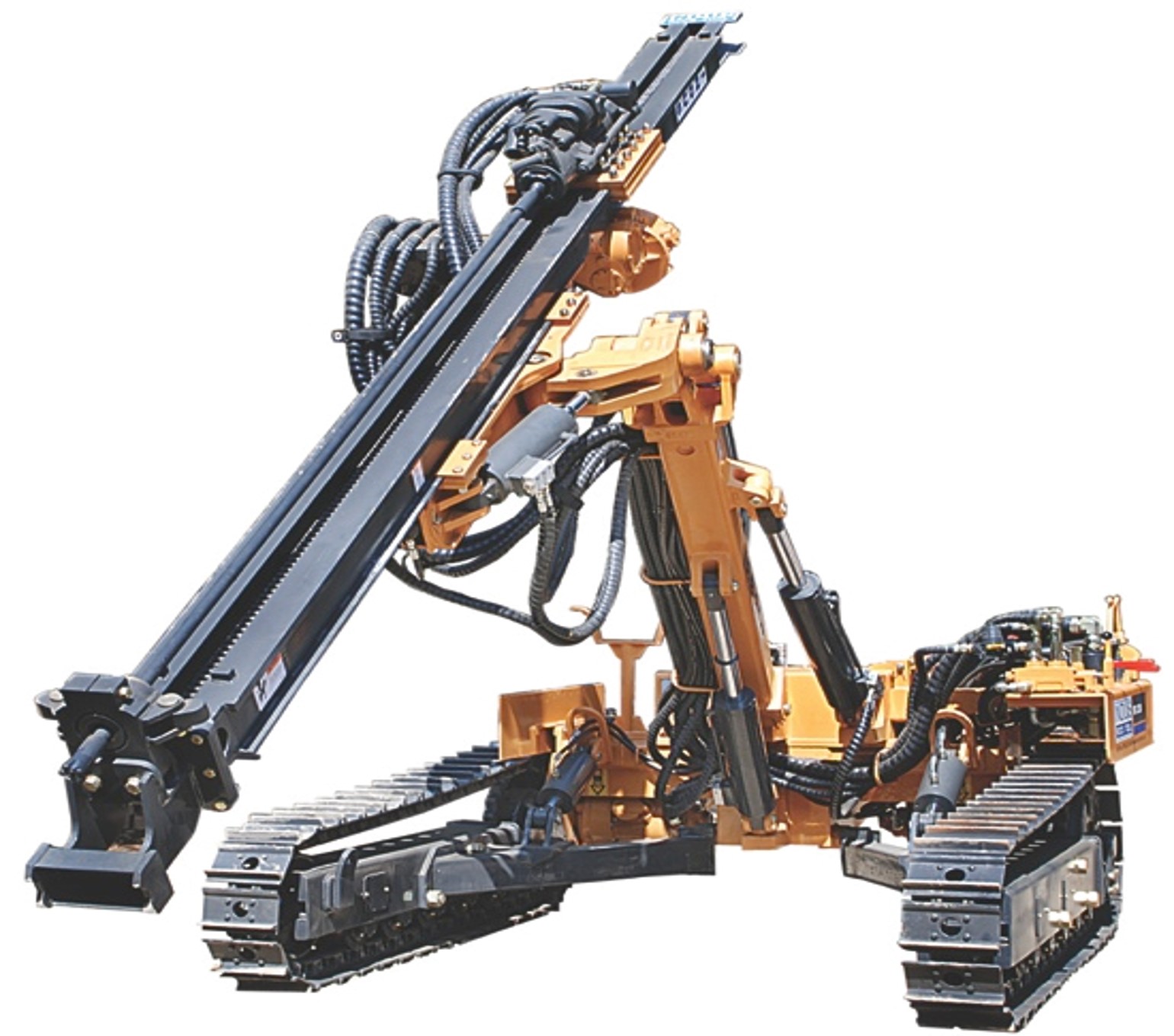

IRB 200 DTH/TH

Pneumatic  Operated Drilling Rig for  Mining & Construction Industry.

IRB-200  Crawler Drill is Intended for  Construction, Quarrying, and Open Pit Mining.

The main features are:

  • Pneumatic - Powered Traction Motors with Gear & Chain Drive
  • Pneumatic - Operated Hydraulic Power Pack for Hydraulic Cylinders.
  • Pneumatic - Operated Feed System Suitable for 10ft Rod Handling Capacity.
  • Side - Mounted Tramming & Positioning Control
  • Heavy Boom System
  • Hydraulic Track Oscillation.
  • Drilling Depth up to 15 Meters
  • High Performance Achievement in Drilling due to High Torque and Great Terrain Ability.

Specification:

Model

Unit

IRB 200 DTH

IRB 200 TH

Working Weight

kg

5460

5460

Top Hammer

type

DTH

TH

Hole Diameter

mm

89~130

64~102

Rod Length

mtr/(feet)

3660 (12 )

3660 (12 )

Hole Depth

mtr/(feet)

15/48

15/48

Recommended Air Compressor

CFM/PSI

450 /220
500 / 185

550 / 200
580 / 115

Site Images
